No. 22 Drifter

No. 22

$3,199.00 USD

This variant is currently sold out

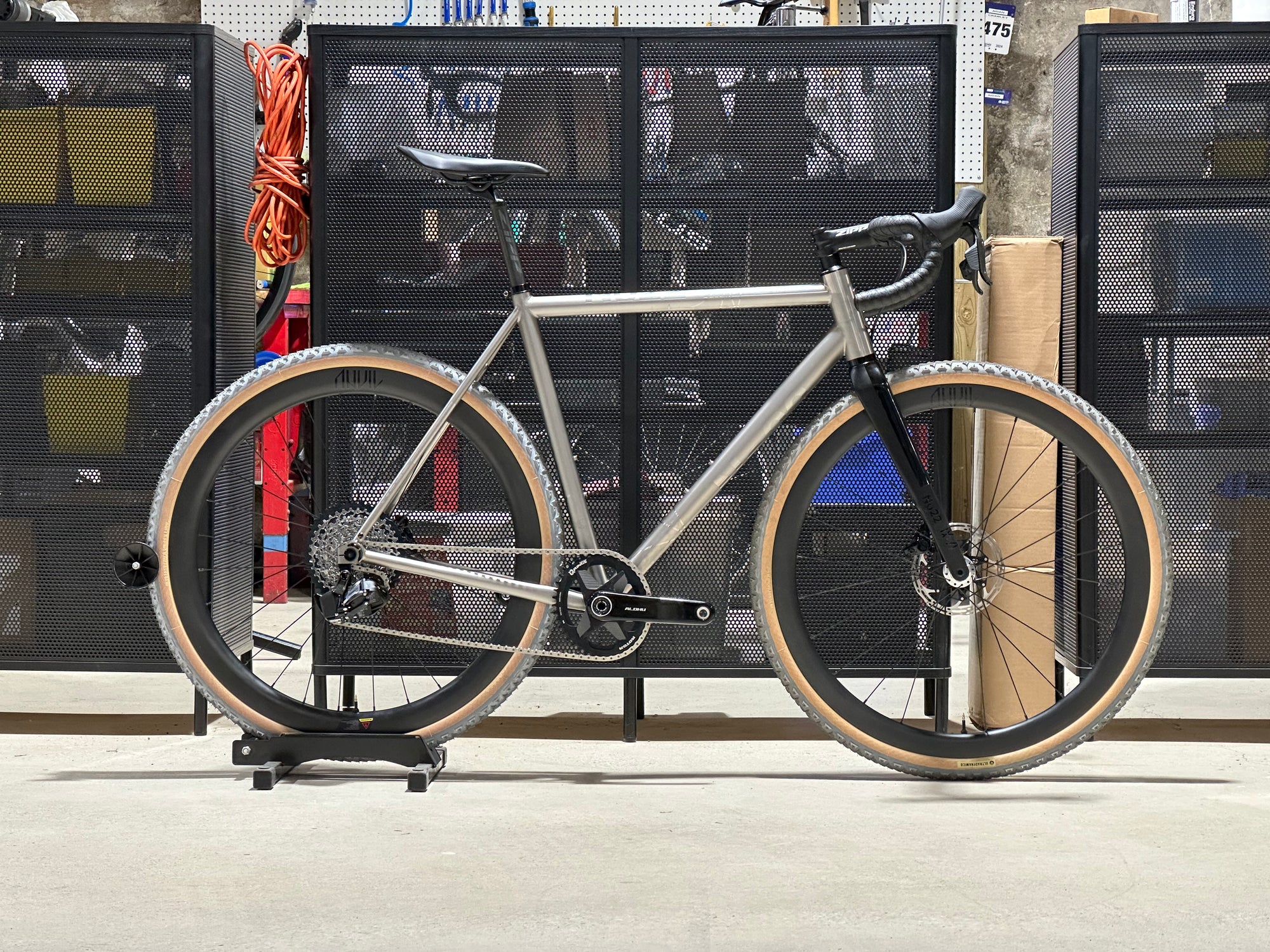

Starting with the 2015 NAHBS-winning Broken Arrow as its foundation, the Drifter is a bike designed for riders needing a capable bike on any road. With generous clearance for up to 40mm tires front and rear, disc brakes with standard thru-axles and any-road capable geometry, the Drifter is the most versatile bike in our lineup.

This is the bike Blacksmith Cycle helped create...

DESIGNED FOR ALL ROADS

Compared to the Broken Arrow cyclocross bike, the Drifter has a lower bottom bracket for improved road and gravel handling, along with a slightly longer wheelbase and quicker steering up front. The result is a bike with stable, balanced handling through high speed gravel corners, but with quick enough responses to be ridden aggressively on-road.

Key features include:
  • Frame material: 3Al-2.5V CWSR titanium with carbon seat mast
  • Point of origin: Handmade in the USA
  • Warranty: Ten year warranty against manufacturing defects
  • Tubing sizes: Fully butted, size specific
  • Head tube: 44mm internal diameter
  • Bottom bracket shell: T47 threaded
  • Seat post diameter: 27.2mm
  • Tire clearance: 40mm
  • Dropout type: 142x12mm (frame) / 100x15mm (fork)
  • Brake caliper mounts: Flat mount
  • Hydraulic hose routing: Internal (frame and fork)

BEAUTIFULLY DETAILED

Like all No. 22 frames, the true beauty of the Drifter lies in its details. The rear brake bridge contributes to the Drifter's 40mm of tire clearance. Optional hidden fender mounts are recessed into the underside of the bridge, out of sight when fenders aren't installed.

The Drifter's flat mount disc brakes allow for clean brake caliper mounting without the use of adapters. Complimenting these low-profile mounts is internal rear brake hose routing, with the brake hose exiting the chainstay just ahead of the brake caliper.

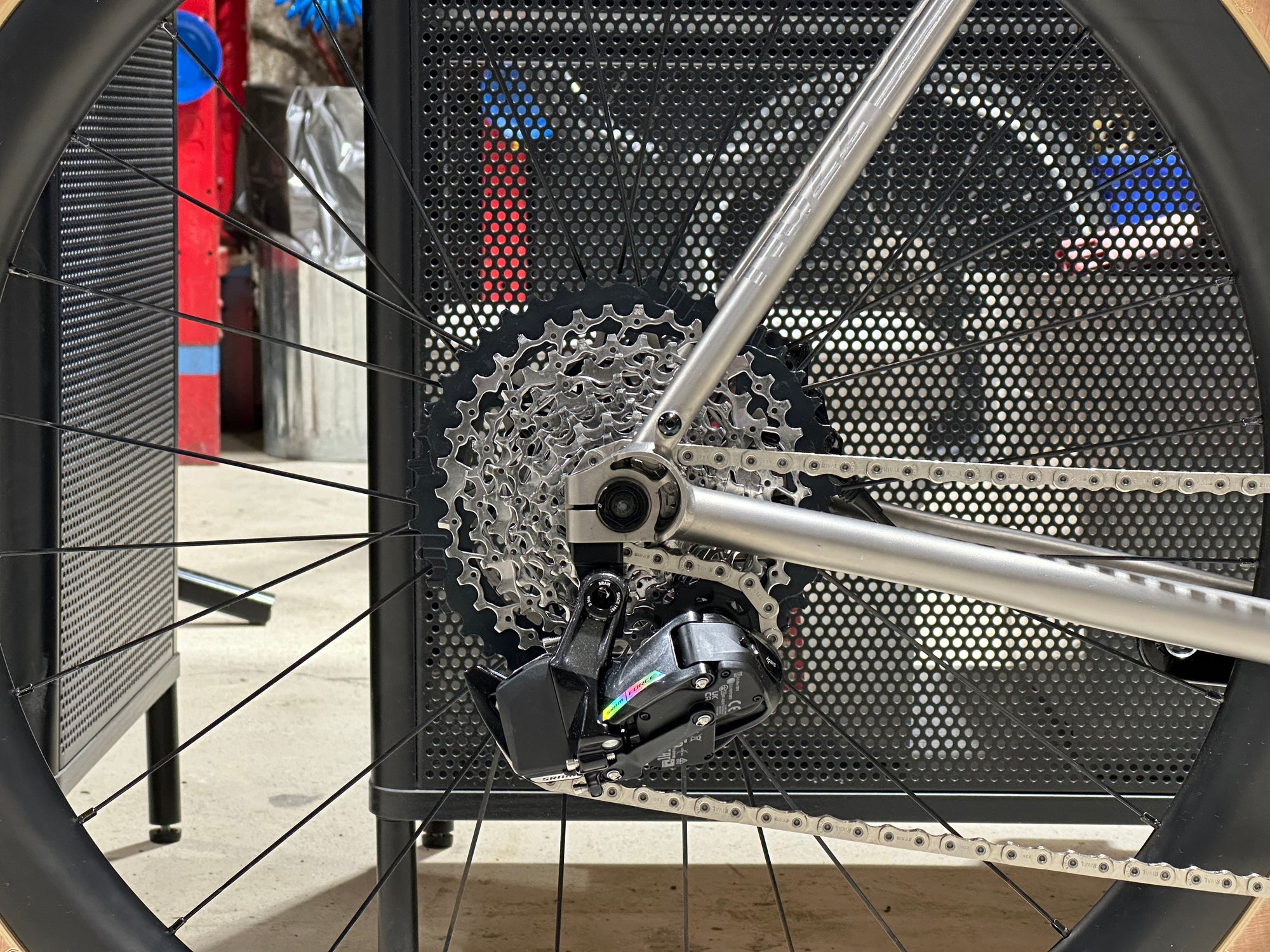

The cast titanium dropouts used on the Drifter offer a large weld surface for stiffness and durability, while paring away unnecessary material. The Drifter uses Syntace's excellent X-12 dropout interface which combines the safety of a replaceable rear hanger with the stiffness and shifting precision of a fixed hanger.

FRAME ONLY, $3,199
  • Frame: Drifter
  • Seatpost clamp: No. 22
FRAMESET, $3,699
  • Frame: Drifter
  • Fork: No. 22 CX disc tapered carbon thru-axle
  • Headset: Chris King Inset 7
  • Seatpost clamp: No. 22
COMPLETE, Please inquire
  • Frame: Drifter
  • Fork: No. 22 CX disc tapered carbon thru-axle
  • Headset: Chris King Inset 7
  • Rear Derailleur: Shimano Ultegra 6800
  • Shifters: Shimano ST-RS685 hydraulic
  • Brakes: Shimano RS-805 hydraulic
  • Cranks: Shimano Ultegra 6800
  • Cockpit: 3T Team Stealth, carbon bars and post
  • Wheels: Reynolds ATR disc carbon thru axle
  • Tires: Schwalbe G-One 35mm
  • Saddle: Fabric Scoop Shallow titanium
