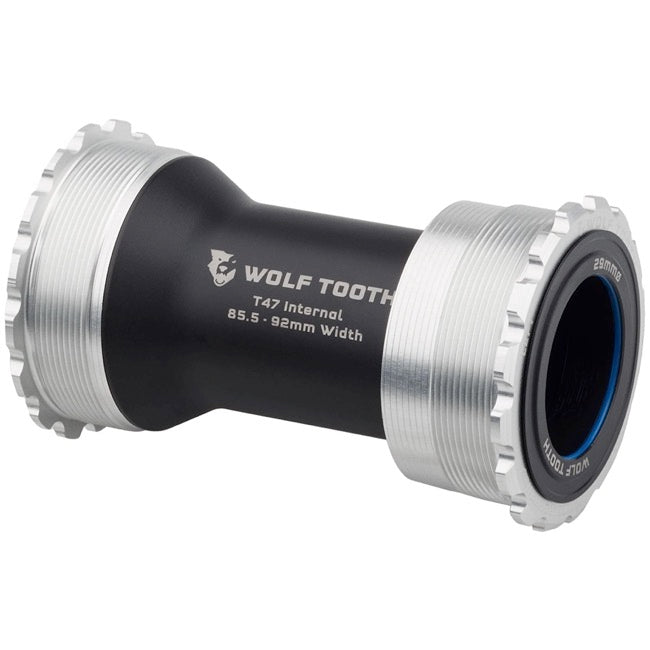

Wolf Tooth T47 Internal DUB Bottom Bracket

Wolf Tooth

Wolf Tooth T47 Internal DUB Bottom Bracket

$238.99 CAD
Colour Raw Silver
Adding to Cart Added to Cart

Pickup available at 1A Givins St, Toronto, ON

Usually ready in 24 hours

Wolf Tooth T47 Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.

  • Compatible with 28.99mm DUB bottom bracket spindles
  • Material: 6061-T6 Aluminum, Glass-filled Nylon, NBR, EPDM, Urethane; Bearing ball material is AISI 52100 chrome bearing steel hardened to Rc 61-66; Bearing race material is AISI 52100 chrome bearing steel hardened to Rc 60-65
  • Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
  • Hardened chrome bearing steel bearings and races (harder surface than Stainless)
  • ACOSUR ZNA coating applied to the race to provide corrosion resistance
  • Best-in-class weather sealing protects bearings from water, mud, and debris
  • Custom polymer spindle bushings: elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions and resist creaking
  • Installation and removal with standard 52-16 spline tool
  • Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
  • Replacement parts and service guides available via Wolf Tooth Right to Repair
  • Includes: 2 x 2.5mm shell spacers; 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm spindle spacers
  • Compatibility:
  • 85.5 - 92mm width T47 Internal bottom bracket shells
  • Bottom bracket bearings sit inside the frame, with tooled flange for installation and removal sitting outside the frame
  • Adjustable-width internal sleeve fits 85.5mm - 92mm T47 Internal bottom bracket
  • Weight: 96g.
